Forging · Steel · Cement · Foundry · Textile · Pharma

Built for India's dustiest floors.

The Airlinic FX100-I is a self-cleaning, plug-and-play air purification system for heavy industry — HEPA-grade air without ducting, downtime, or a maintenance crew.

Book a Site Assessment See the Technology

NABL Certified · Patent Applied · Made in Mumbai

Clairifier Airlinic FX100-I purifying a factory floor — Airlinic FX100-I

Filtration at ≥ 0.3 µm · HEPA H13

0ft²

Coverage per unit at 3 ACH

0CFM

Design airflow rate

24/7

Self-cleaning operation

The Problem

A factory floor can run 10–50× dirtier than Delhi's worst smog day.

95% of Indian plants still rely on exhaust fans, dust collectors and baghouses alone. Workers breathe PM10 and PM2.5 at 2–3× the NAAQS limit for twelve hours a shift — fatigue, respiratory strain, and CPCB penalties of ₹10–50 lakh per incident.

95% of plants: exhaust fans only 2–3× NAAQS exposure limits ₹10–50L penalty per violation

This is the air your crew breathes.

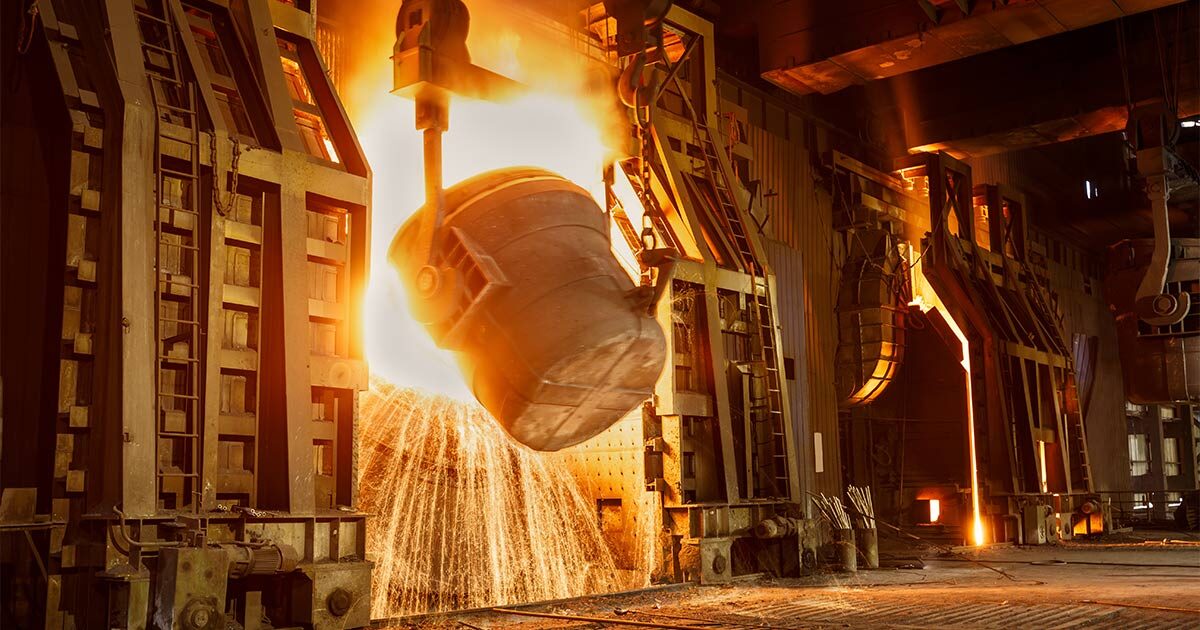

Molten steel ladle pour showering sparks in a steel plant — **Steel**Ladle pour

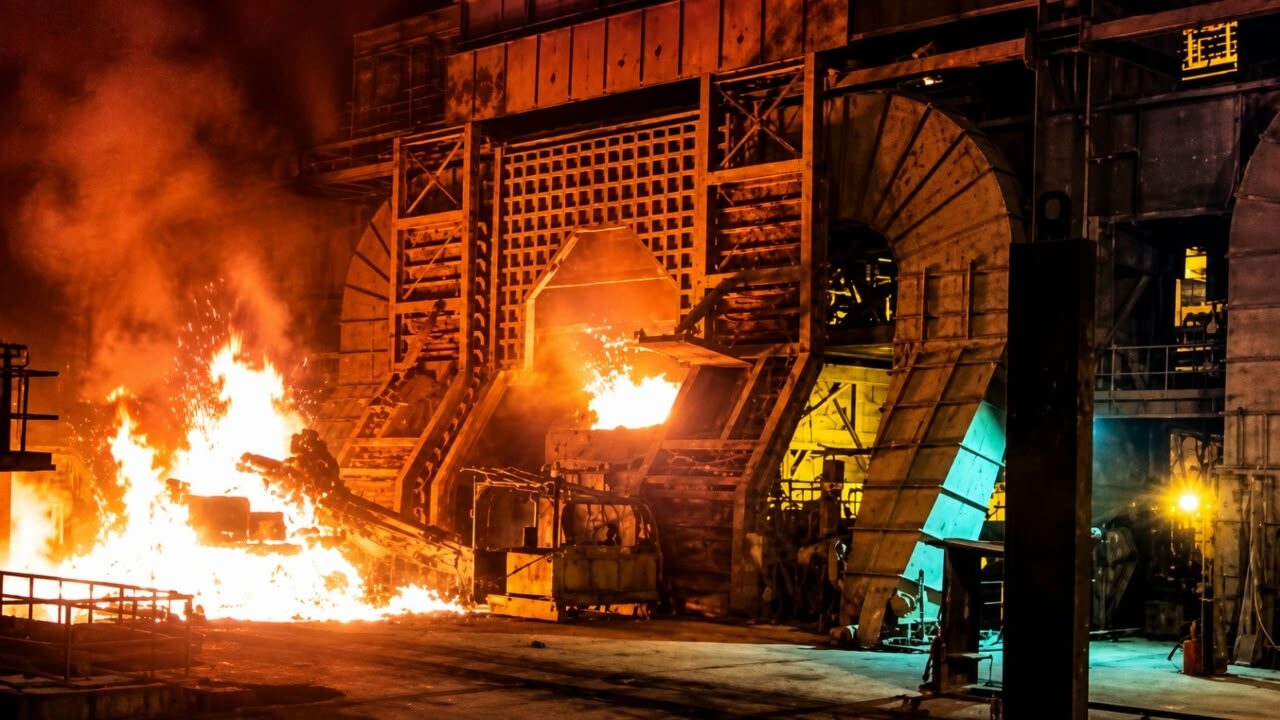

Open furnace flames on a foundry floor — **Foundry**Furnace floor

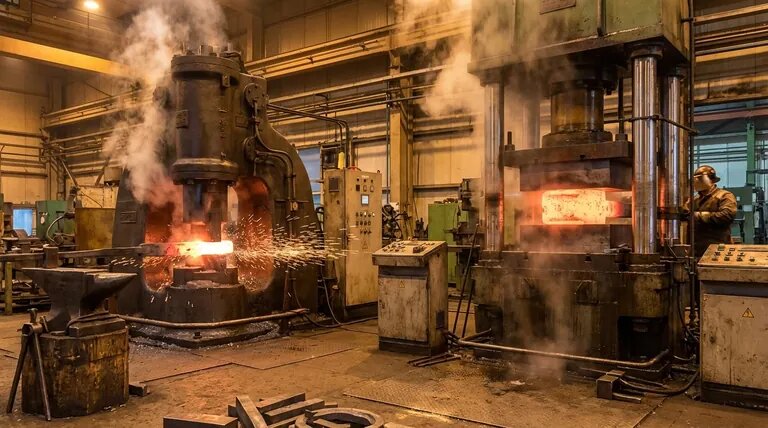

Forging presses with steam and a glowing steel billet — **Forging**Press shop

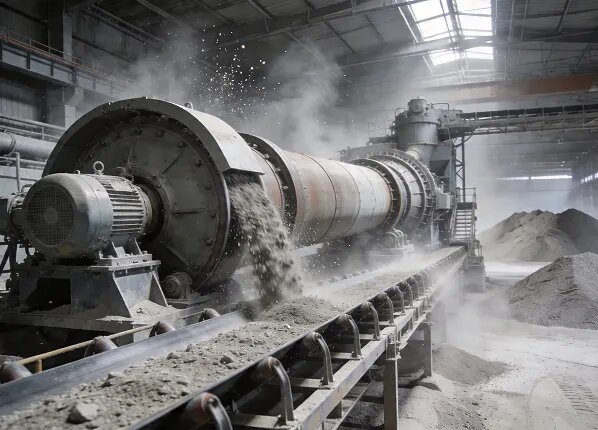

Cement raw mill throwing visible dust clouds — **Cement**Raw mill dust

The Machine

Meet the Airlinic FX100-I.

A self-contained, floor-standing purifier for continuous 24/7 duty in heavy industry. Four filters and two self-clean systems in one vertical stack — filters keep their performance, crews keep their shifts.

HEPA H13Self-Cleaning ESPPlug & Play1-Yr Warranty

4,500 ft²Coverage @ 3 ACH

2,400 CFMAirflow · 1,400 RPM fan

660 W+ 700 W self-clean cycle

80 dBASound at high speed

821×775×2110mm · powder-coated GI

200 kgFloor-standing, on castors

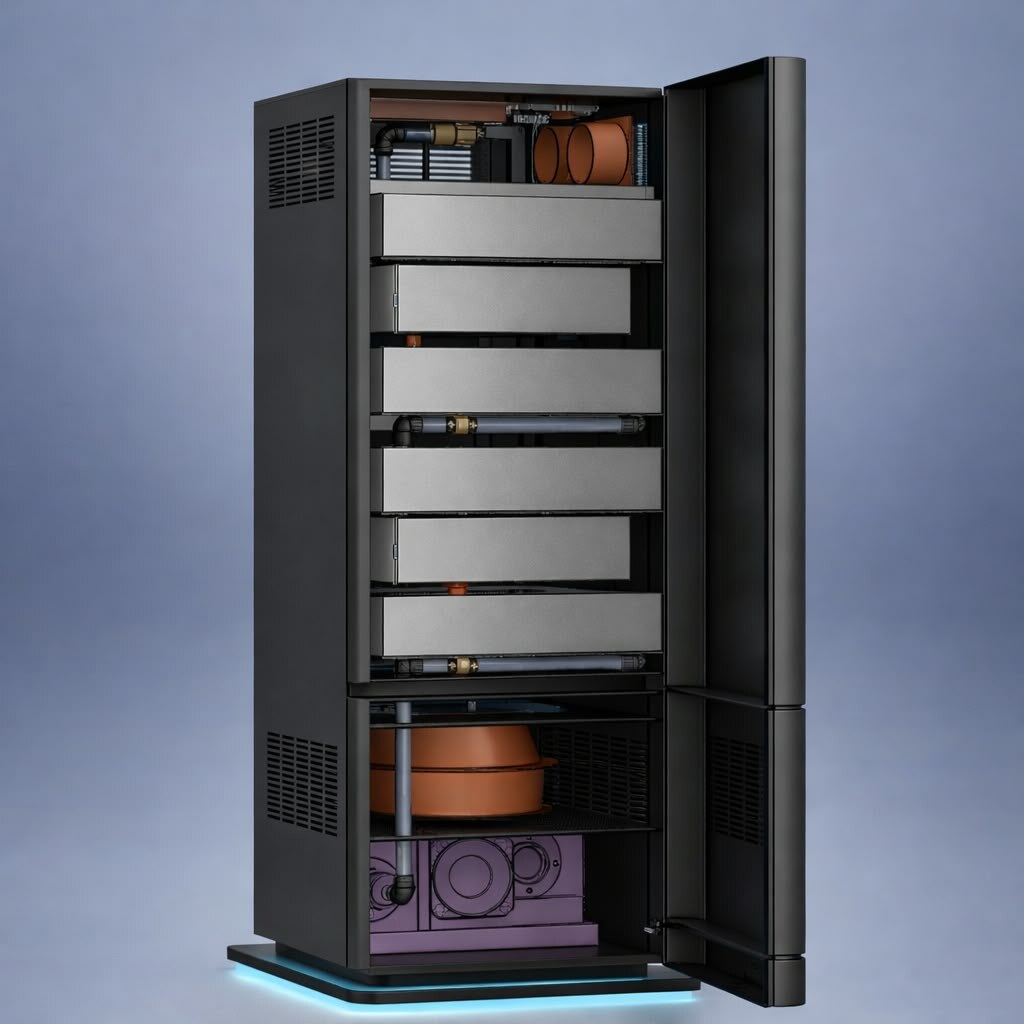

Airlinic FX100-I with the service door open, showing the vertical filter tray stack — Six-stage stack · door open

The Technology

Four filters. Two self-clean systems. Zero manual cleaning.

Four filters and two automated self-clean systems work as one vertical stack — collected dust is stripped away while the unit keeps running, with no manual washing between shifts.

01 · TopSelf-Cleaning MechanismAutomated cleaning at the top of the stack
02Pre-FilterCoarse dust, fibres & metal particulates
03ESP FilterCharges & collects fine particulates
04Self-Cleaning ChamberAutomated dust removal from the ESP core
05HEPA Filter99.97% at ≥ 0.3 µm · H13
06Activated Carbon FilterGases, VOCs & odours

The four filters, up close

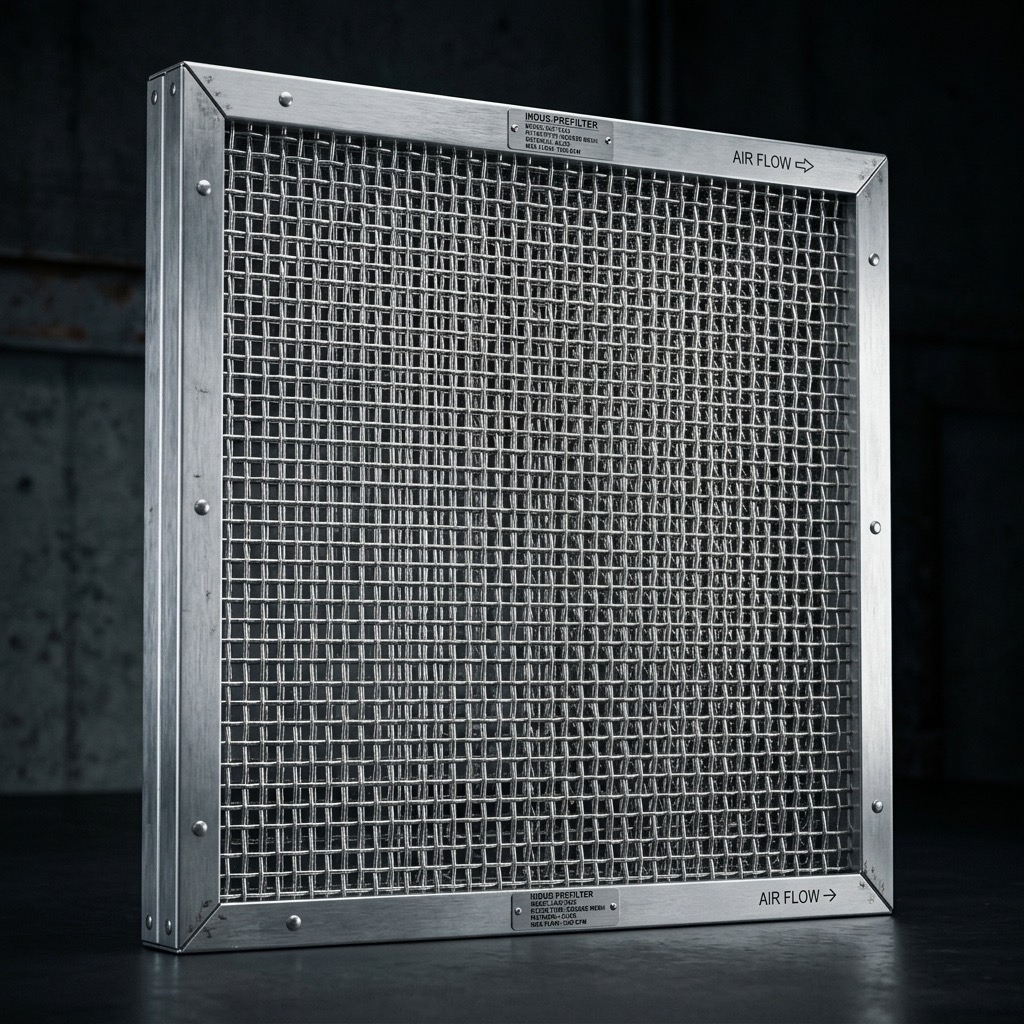

Pre-Filter

Captures coarse dust, fibres and metal particulates — protects every stage in the stack downstream.

Coarse particle guard

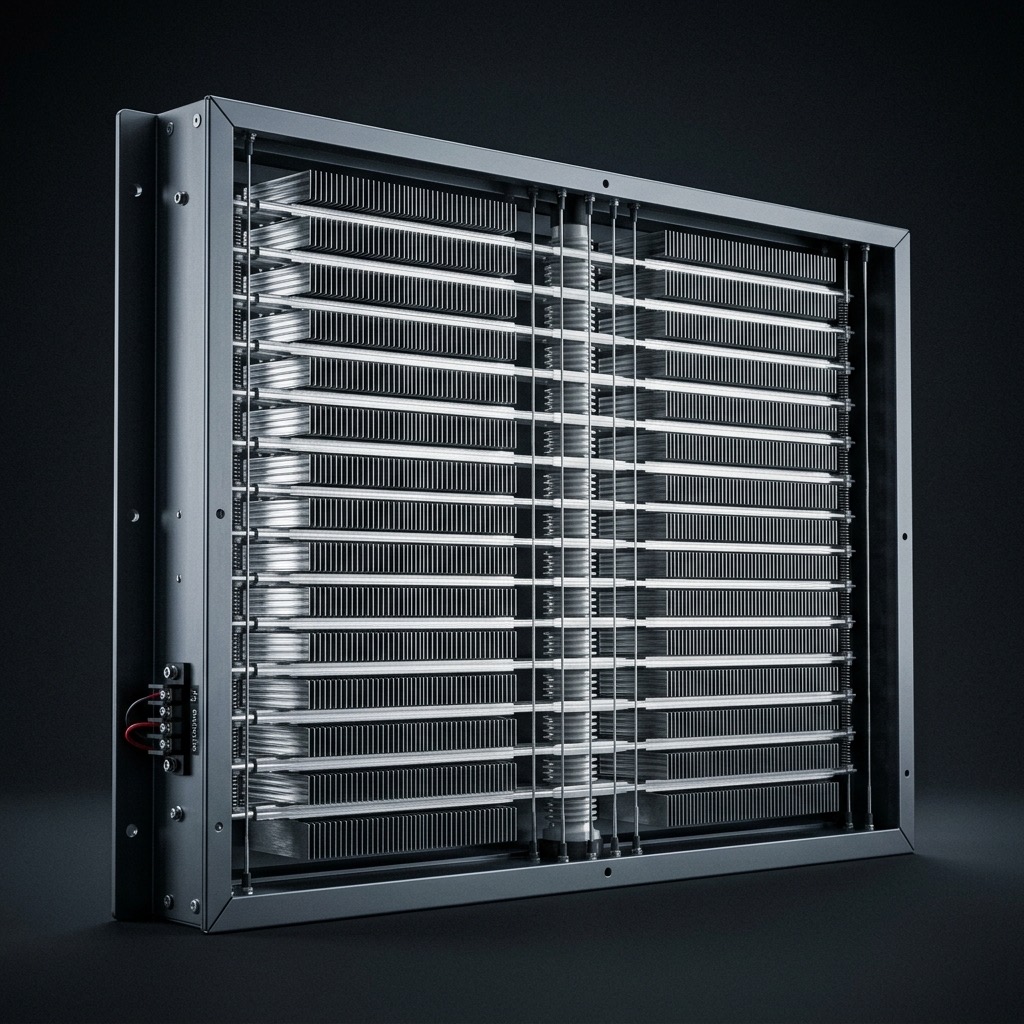

Electrostatic precipitator collector plates

ESP

Electrostatic precipitator cells charge and collect fine particulates. MERV-14 rated, UL certified.

MERV-14

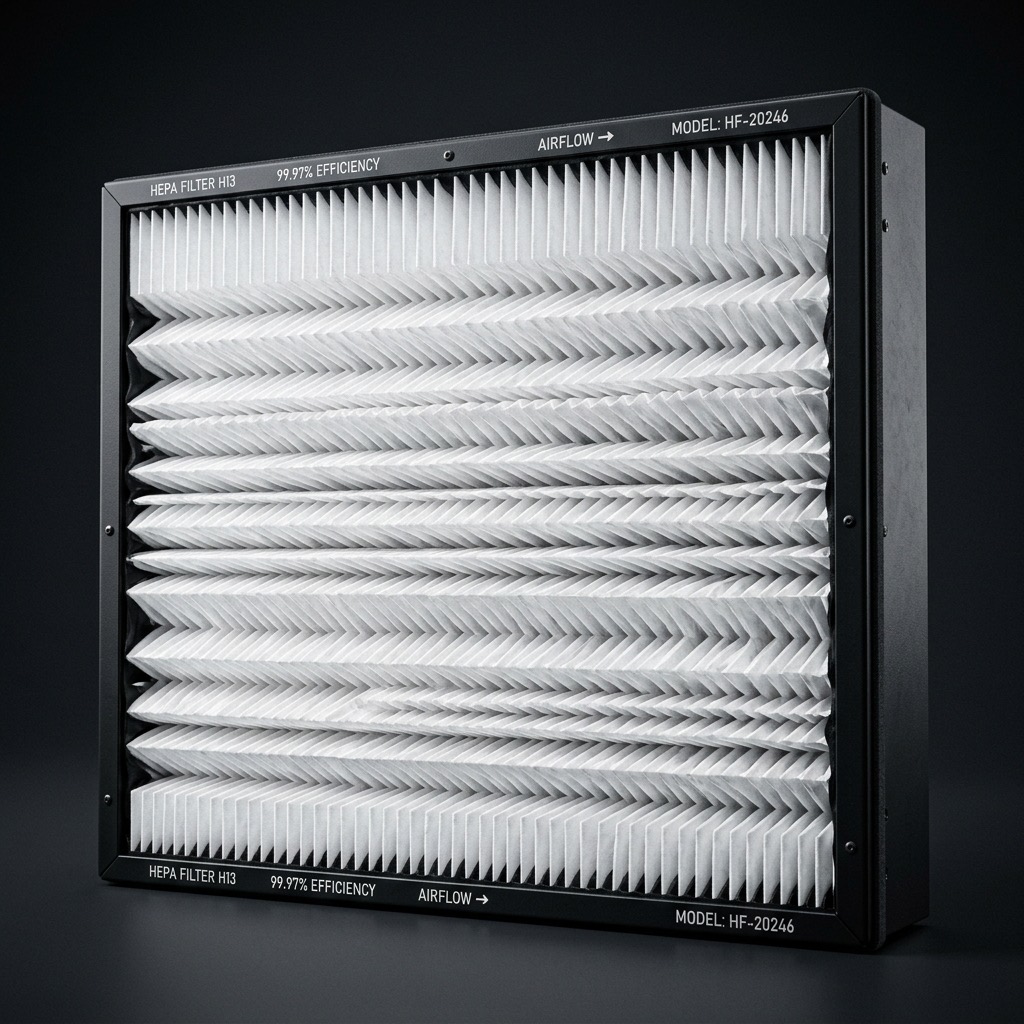

HEPA H13

Medical-grade particle barrier. 99.97% of bacteria, allergens and fine dust at 0.3 microns.

99.97% @ ≥0.3 µm

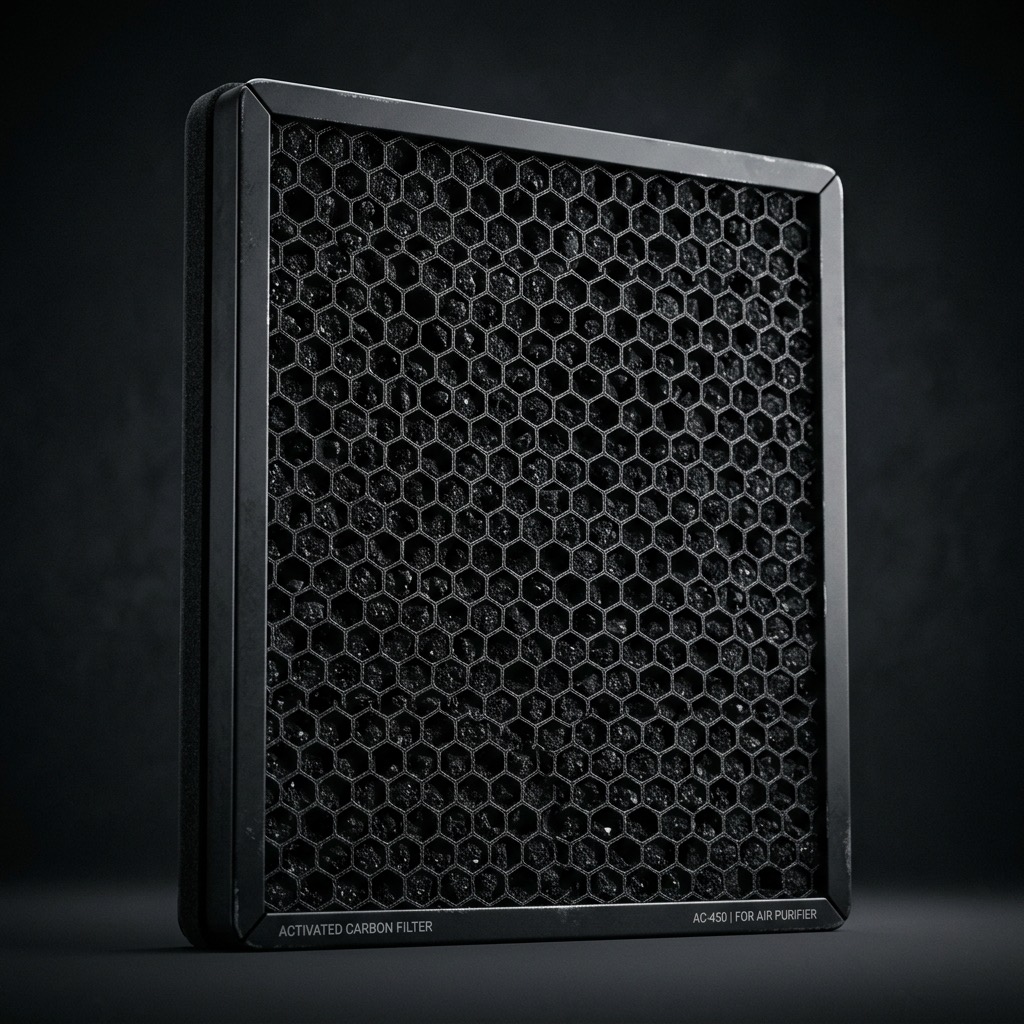

Activated Carbon

Final stage in the stack — granular carbon adsorbs gases, VOCs and odours.

VOC · Gas · Odour

Self-Cleaning Mechanism

Automated cleaning at the top of the stack — performance holds at 24/7 duty.

Self-Cleaning Chamber

Sits between the ESP and HEPA stages, stripping collected dust away automatically. No manual washing, no downtime.

UV-C & Plasma

UV-C sterilisation and a fan-mounted plasma ioniser for microbial and fine-particle control.

Where It Works

Built for the floors India runs on.

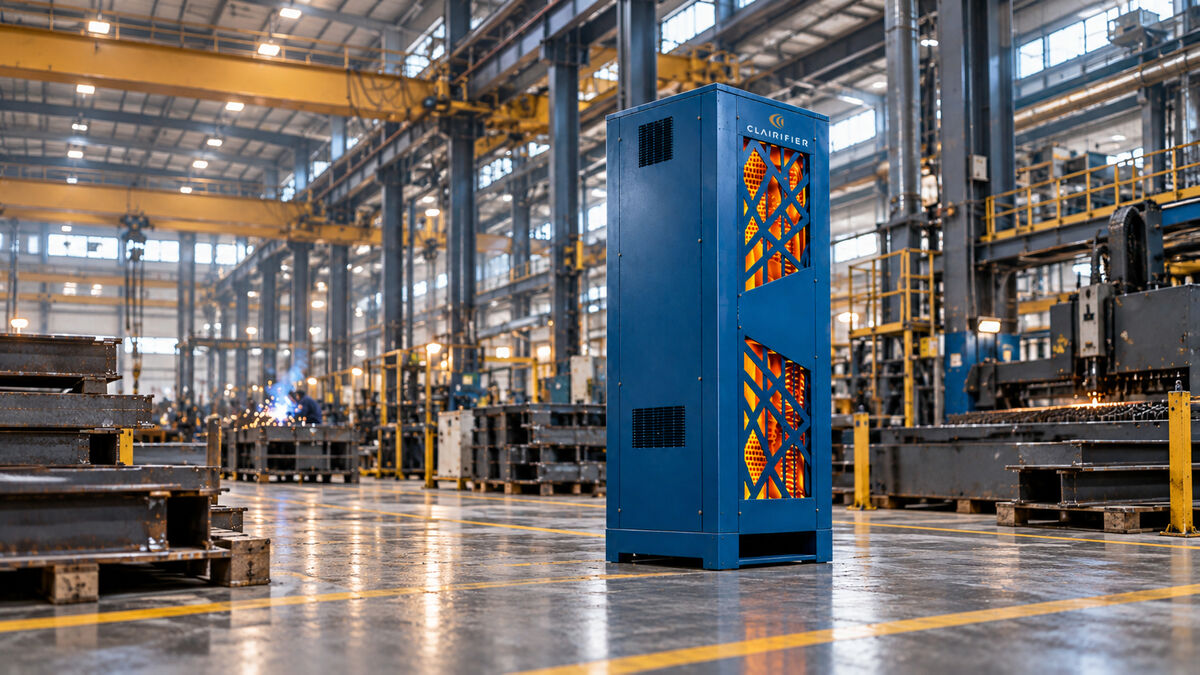

Clairifier FX100 standing on a steel fabrication floor with welding bays

Steel & Forging

Welding fumes, grinding dust and furnace particulates — captured at source, around the clock.

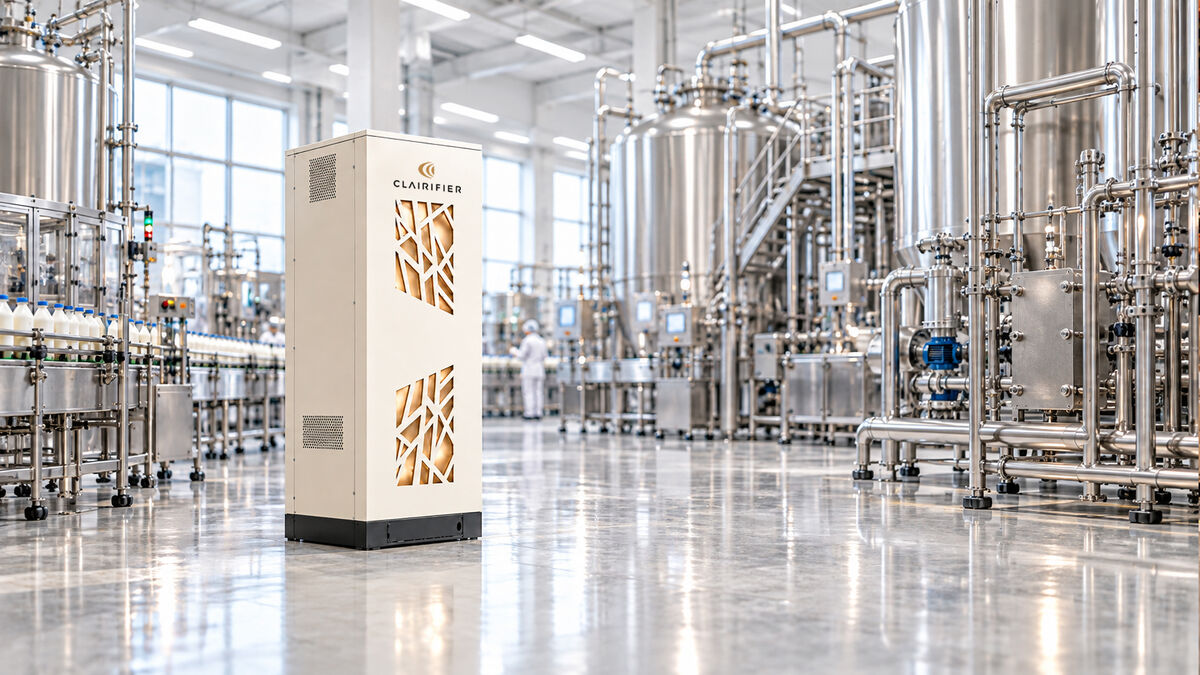

Clairifier FX100 in a pharmaceutical processing plant with stainless steel lines

Pharma & Food Processing

HEPA H13 air for processing and packaging zones, with optional UV-C sterilisation.

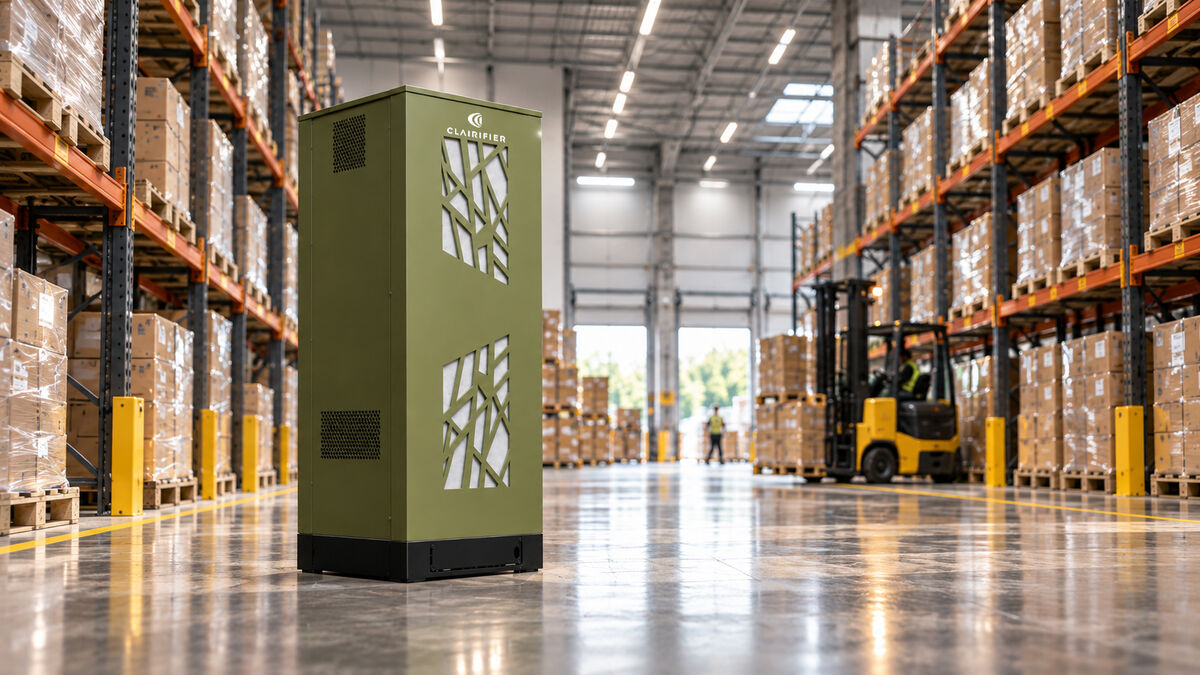

Clairifier FX100 in a warehouse with pallet racking and forklifts

Warehousing & Logistics

High-volume racking floors covered at 3 air changes per hour — plug and play.

Also engineered for Cement · Foundries · Textile

Deployment

From site survey to clean air in days.

Site assessment

An engineer measures your floor area, ventilation and dust load — free of charge.

Proposal & layout

Unit count, placement and airflow plan, delivered within 48 hours.

Installation

Plug-and-play commissioning. No ducting, no civil work, no line stoppage.

Support

Filter alerts, annual servicing and 1-year warranty on motor & self-cleaning.

Proven

Already working where the dust is.

"An environment with continuous metalworking dust. Air quality measurably improved within hours of deployment. The self-cleaning mechanism is genuinely impressive."

Workshop trialITI Government College, Vidyavihar, Mumbai

"An outdoor setup with scaffolding and foot traffic. Plug-and-play meant we had it running in minutes with no modifications. NABL-certified results confirmed performance on-site."

Event deploymentSomaiya Institute, Mumbai

"Active pilot pipeline across municipal corporations and hospitals in Maharashtra — supported by the Department of Industries, Government of Maharashtra."

Public sectorOngoing pilots, 2026
